F110
F110 - Image 1

F110

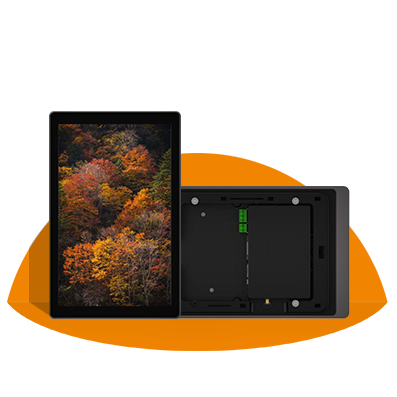

The FE6156H F110 from Flexem is a high-performance 10.1″ capacitive touchscreen HMI built for modern industrial and smart control applications. Featuring a multi-touch capacitive display with 800×1280 resolution, 16:10 aspect ratio, and 24-bit full-color support, it offers crisp visuals and a smooth, responsive user experience. The full-view high-brightness screen supports both horizontal and vertical orientations, making it ideal for flexible panel design and varied installation environments.

Powered by a high-performance CPU with large-capacity onboard storage, the F110 delivers fast processing, intuitive interaction, and reliable connectivity. With built-in IoT and Bluetooth functionality and an Ethernet port, it enables seamless remote monitoring and control, making it well-suited for applications in smart manufacturing, energy systems, and connected infrastructure. The FE6156H F110 is a future-ready interface solution that combines sleek design with industrial-grade reliability and intelligent connectivity.

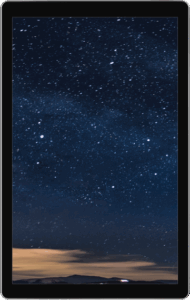

F Series Capacitive HMl

-Light up the beauty of industry –

High-Definition, High-Brightness, Wide-Viewing-Angle Display / Remote PLC Program Download / VNC Remote Screen Sharing

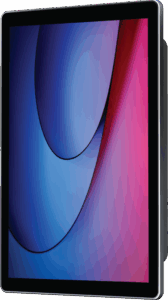

High Definition, High Brightness, wide Viewing angle.

The F1 series capacitive HMI utilizes an IPS True Color LCD screen with a resolution of 1280×800, offering a maximum viewing angle of 170°. This ensures easy viewing and operation of the touchscreen.

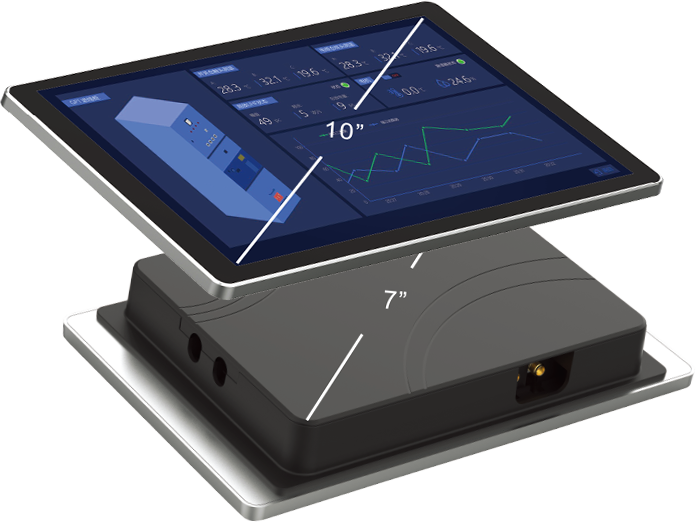

7-Inch Cutout, 10-Inch Overall

The Mona Lisa HMI offers a 10-inch screen with 7-inch cutout size. This results in a large display with a compact footprint.

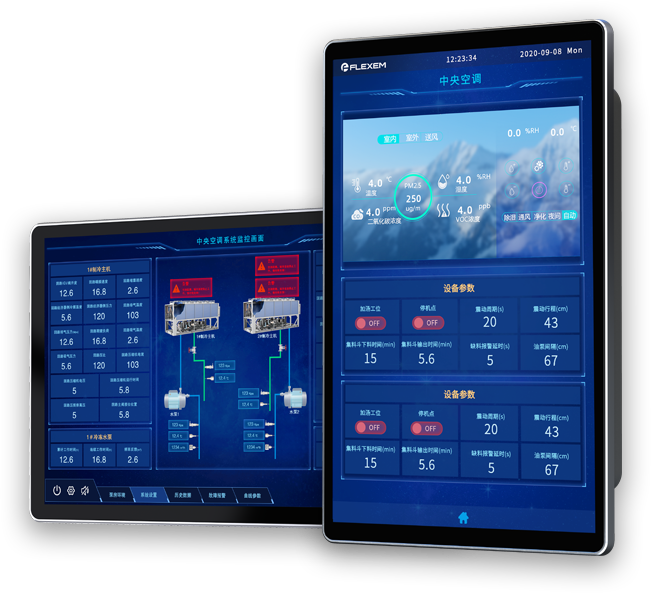

Support both horizontal and vertical installation,
Self-adaptive screen rotation.

The slim bezel design of the F1 HMI ensures that it looks equally aesthetic and well-coordinated whether used in horizontal or vertical orientation. This versatility makes it suitable for a variety of application scenarios.

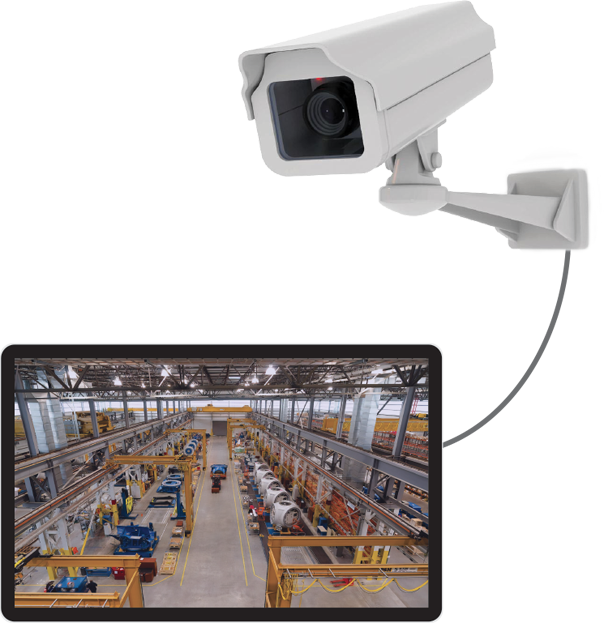

Supports Cameras and Video-Based Scenarios with Full-Screen Control

The F110V allows for remote viewing of on-site equipment operation via live camera feed connected through an Ethernet cable.

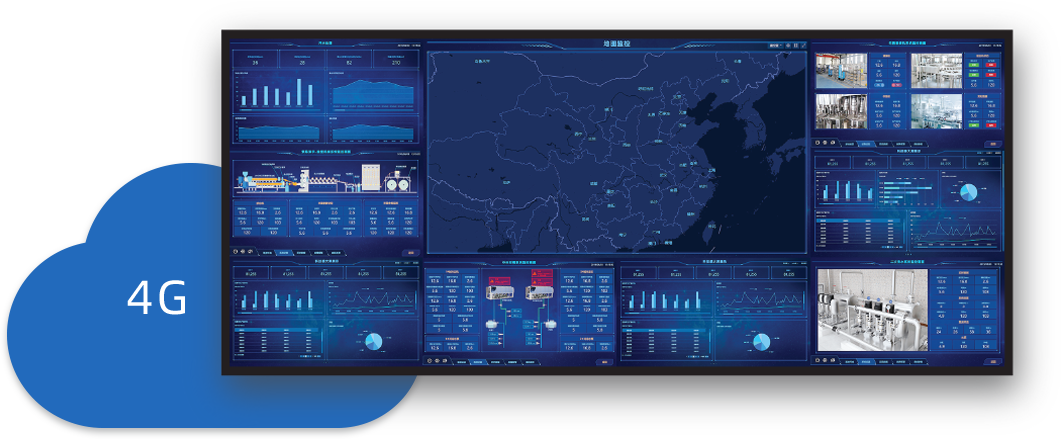

The device comes with built-in IoT capabilities, supporting cloud-edge collaboration and intelligent interaction.

The device enables network connectivity via 4G,Ethernet,or WiFi. This allows for remote operation and monitoring of the equipment’s operational status.

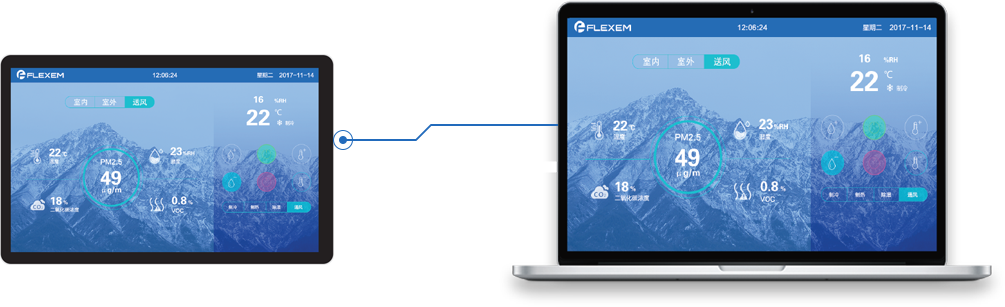

Supports VNC Remote Screen Sharing
Bringing Operational Scenarios Within Reach

The device supports VNC functionality, which allows the touchscreen display at the site to be remotely projected to a PC. This enables users to remotely operate the on-site equipment as if they were interacting with it locally.



FEATURES F110
Display 10.1″ 16:10 TFT LCD
LCD Viewing Angles (T/B/L/R) 85’/85’/85’/85′
Resolution 800×1280
Colors 24-bit
Brightness 400 cd/m²
Touch Panel Glass+Glass projective multi-touch capacitive touchscreen
CPU 1GHz, Dual core Cortex -A7
Storage 4GB eMMC+256MB DDR3
Ethernet Port 1*RJ45, based on 10/100Mbps
USB Port 1*USB Type-C 2.0 port, 1*USB Type-A 2.0 port
Download Method USB slave/Flash drive/Ethernet
Serial Port COM1: RS232/RS485/RS422,

COM2: RS485,

COM3: RS232
SD Card NA
Bluetooth Available
loT Network Access Ethernet,4G
Network Frequency Band LTE FDD:B1/B3/B5/B8,

LTE TDD: B38/B39/B40/B41
VPN Passthrough Available
Data Monitoring 300 points
Alarm Notification 100 points
Historical Data 100 points
Edge Computing 30 points
Network Protocol Supports over 100 industrial  devices protocols
Management and Maintenance Support import, export, and remote update of  configuration files
Rated Power <10W
Rated Voltage DC 24V, working range:DC9V-28V
Power Protection Lightning surge protection
Power Interruption Tolerance <5mS
Certification CE,RoHS
Operating Temperature -10-60℃
StorageTemperature -20-70℃
UV Resistance Not for use in high UV environments
Environmental Humidity 10-90%RH (Non-condensing)
Vibration Endurance 10-25 Hz (X,Y,Z direction,2G/30 min)
Protection Level Front:IP65(NEMA panel),  Rear:IP20
Enclosure Material Zinc alloy + Engineering plastic
Cutout Size 138mm×192mm
Dimensions 158mm×249mm×30mm
Weight About 900g

Related products

  • F007N

    F007N

    The F007N from Flexem is a sleek and responsive 7″…

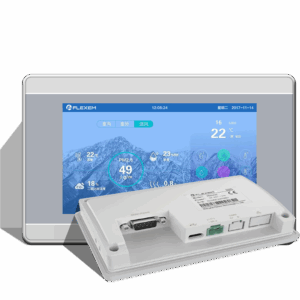

  • FE3343C
