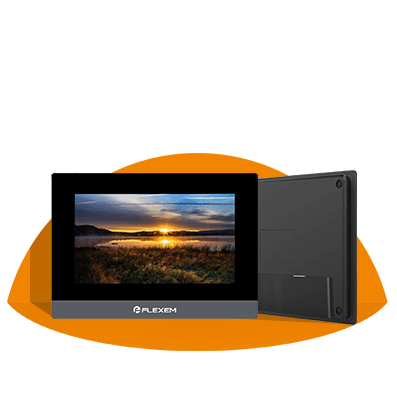

FE6370C

The FE6370C 7″ IoT HMI from Flexem is a compact and intelligent interface solution tailored for industrial automation and IoT-enabled applications. Featuring a 7-inch 16:9 resistive TFT LCD with an 800×480 resolution and 24-bit color depth, it offers clear, high-contrast visuals within a sleek and durable black frame. Powered by a 1GHz dual-core Cortex-A7 processor and equipped with 4GB of internal storage, this HMI ensures fast data handling, reliable system performance, and smooth user interaction.

Part of the robust FE6300 series, the FE6370C supports up to 3000 tags, making it ideal for sophisticated monitoring and control tasks across industries such as manufacturing, packaging, and smart infrastructure. Its support for a pluggable Flink2 IoT module allows for flexible internet connectivity, enabling cloud integration, remote access, and real-time data management. Designed for modern automation environments, the FE6370C delivers the power, scalability, and connectivity essential for today’s digital industrial systems.

Flexem logo

FE6300 Series

High Performance Touch Screen

IoT HMI

Comprehensive Configuration

Hardware configuration comparable to standard IPC with dual-core 1GHz ARM Cortex-A7, 4GB eMMC + 256MB DDR3.

4G/WiFi, Model

The new FLink2 IOT module supports both physical IoT card and patch card, which can be flexibly switched according to the actual environment. Provides a variety of Internet connection methods, plug and play, reducing the IoT program application access costs.

4G Model WiFi Model 4G+WiFi Model

Hidden Installation, Supports Hot Swapping
Free from Hardware Lock-in

The FLEXEM 6300 Series HMI features a reserved slot for IoT module installation on the back, with a latch-locking mechanism that makes installation easier and more streamlined. This design ensures that the structure is not obtrusive, enhancing the aesthetic appeal of the device while maintaining convenience. The HMI supports hot-swappable modules, allowing for secure replacement even during operation.



Software Upgrade, Stand-alone Configuration

In FStudio configuration software, users can freely configure the priority of Internet access, new right drop-down window interaction mode, users can customize the content of the window. In addition, the software itself supports the MQTT communication protocol, no need to rely on the gateway, users can easily configure, subscribe and publish data without writing complex scripts.

Ethernet/ WiFi/ 4G Customize the content of the drop-down window Support MQTT


Outstanding Performance




FEATURES FE6370C
Display 7″ 16:9 TFT LCD
LCD  Viewing  Angles(T/B/L/R) 50’/70’/70’/70′
Resolution 800×480
Colors 24-bit
Brightness 350 cd/m²
Backlight LED
LCD Lifetime 50000 hours
Touch Panel 4-wire resistive touchscreen
CPU 1GHz, Dual core Cortex-A7
Storage 4GB eMMC + 256MB DDR3
RTC Built-in
SD Card NA
Ethernet port NA
USB Port 1*USB Type-C 2.0 port, 1*USB Type-A 2.0 port
Download Method USB Slave Port/USB drive
Serial port COM1: RS232/RS485/RS422,

COM2: RS485,

COM3: RS232

Rated power <10W
Input Voltage DC24V, Working range DC9V-28V
Power supply protection With lightning surge protection
Power Interruption Tolerance <5mS
Certification CE, RoHS
Operating Temperature 0-50℃
StorageTemperature -20-60℃
UV Resistance Operating in high UV environment is prohibited
Environmental Humidity 10-90%RH (Non condensing)
Vibration Endurance 10-25Hz (X,Y,Z direction 2G/30 minutes)
Cooling Mode Natural Cooling
Protection Level Front:IP65,Rear:IP20
Enclosure Material Engineering plastic, black
Cutout Size 190mm×136mm
Dimensions 204×145×36.6mm
Weight About 476g
