High Voltage AC SERVO Motor -

High Voltage AC SERVO Motor

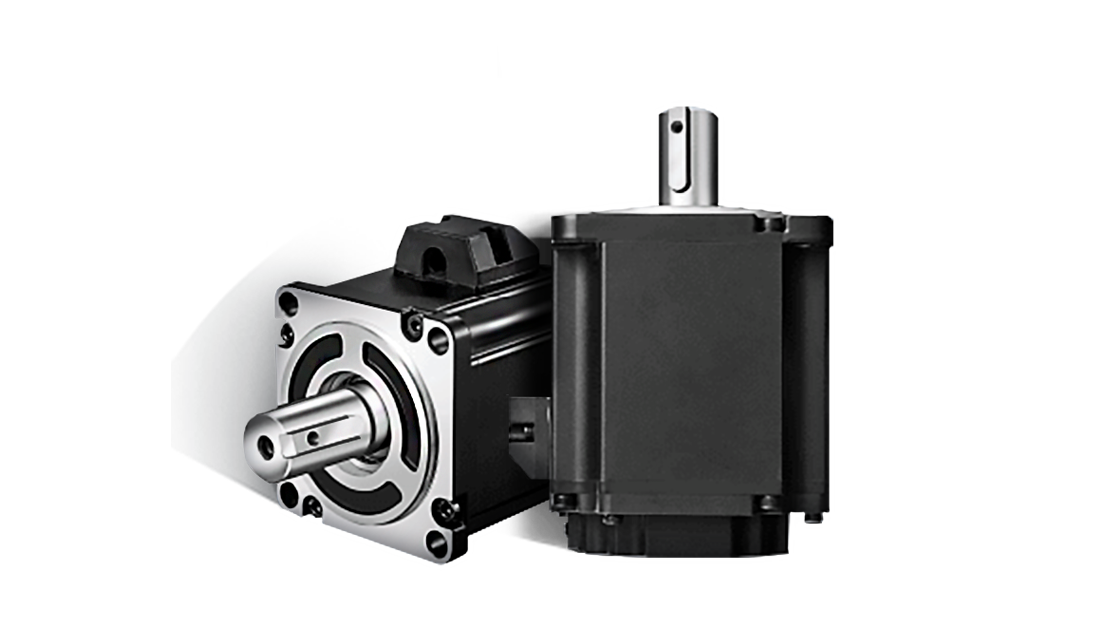

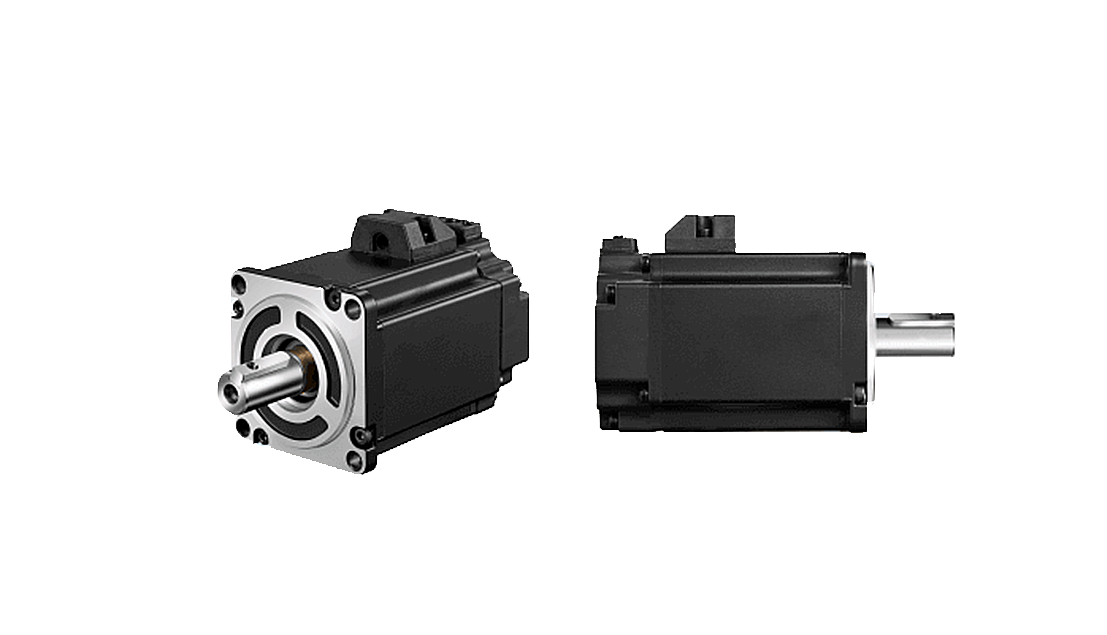

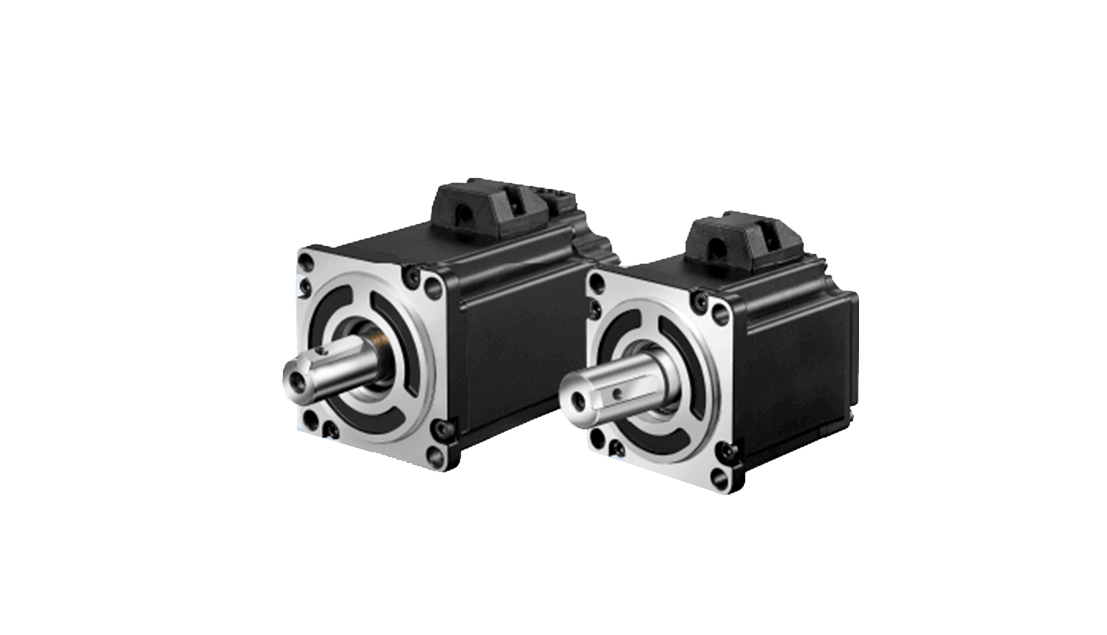

The HV AC Servo Motor series from Flexem delivers exceptional performance for both high-demand industrial applications and general-purpose motion control. With options including the high-performance EAM Series and the versatile ECM Series, these motors are available in low, medium, and high inertia configurations, ensuring smooth and accurate operation across a variety of load conditions. Offering flange sizes from 40mm to 180mm and a wide power range from 50W to 7.5kW, this series is designed to meet the rigorous needs of advanced automation environments.

High Voltage AC SERVO Motor

High-performance EAM series and general-purpose ECM series, low, medium and high inertia levels, 40mm~180mm flange size, 50W~7.5kW power range, high-precision 17bit and 23bit encoders, protection level up to IP67, and up to 3.5 times overload.

Model	Flange Dimensions	Rated Power (W)	Rated Torque （Nm）	Max. Torque （Nm）	Rated Current （Arms）	Rated Rotational Speed （rpm）	Max. Rotational Speed （rpm）	Rotational Inertia (kg.㎡×10⁻⁴)	Voltage (V)
EAM-WH-A530A-□3▲	40	50	0.16	0.48	0.6	3000	6000	0.035 (0.038)	220
EAM-WH-0130A-□3▲	40	100	0.32	0.96	1.0	3000	6000	0.053 (0.056)	220
EAM-WH-0230A-□3▲	60	200	0.64	1.92	1.4	3000	6000	0.29 (0.32)	220
EAM-WH-0430A-□3▲	60	400	1.27	3.81	2.8	3000	6000	0.53 (0.56)	220
EAM-WH-0830A-□3▲	80	750	2.4	7.2	3.8	3000	6000	1.62 (1.72)	220
EAM-WH-1030A-□3▲	80	1000	3.2	9.6	5.5	3000	6000	2.1 (2.2)	220
EAM-WG-1230A-□3▲	110	1200	4.0	12.0	5.0	3000	3500	7.3 (7.5)	220
EAM-WH-1530A-□3▲	110	1500	5.0	15.0	6.0	3000	3500	9.2 (9.4)	220
EAM-WH-1830A-□3▲	110	1800	6.0	18.0	7.7	3000	3500	10.8 (10.9)	220
EAM-WG-0915A-□3▲	130	850	5.39	16.17	6.9	1500	3000	10.9 (12.13)	220
EAM-WG-1315A-□3▲	130	1300	8.34	25.02	10.7	1500	3000	16.9 (18.13)	220
EAM-WG-1515A-□3▲	130	1500	10.0	25.0	6.0	1500	2000	18.8 (20.28)	220
EAM-WG-1815A-□3▲	130	1800	11.5	34.5	13.8	1500	3000	21.4 (22.63)	220
EAM-WG-0915T-□3▲	130	850	5.39	16.17	4.0	1500	3000	10.9 (12.13)	380
EAM-WG-1315T-□3▲	130	1300	8.34	25.02	6.0	1500	3000	16.9 (18.13)	380
EAM-WG-1815T-□3▲	130	1800	11.5	34.5	8.5	1500	3000	21.4 (22.63)	380
EAM-WG-3030T-□3▲	130	3000	10.0	23.0	8.0	3000	3500	25.5 (27)	380
EAM-WG-2915T-□3▲	180	2900	18.6	55.8	11.9	1500	3000	62.5 (69.5)	380
EAM-WG-4415T-□3▲	180	4400	28.4	85.2	16.5	1500	3000	88.5 (94.5)	380
EAM-WG-5515T-□3▲	180	5500	35.0	105.0	20.8	1500	3000	114.4 (120.4)	380
EAM-WG-7515T-□3▲	180	7500	48.0	120.0	26.0	1500	3000	136.6 (142.6)	380

Note:
When □ is U: Supports 23-bit optical encoder, requires FV5-R3 driver
When ▲ is 0: Motor without holding brake
When ▲ is 2: Motor with holding brake
(The values after the rotating inertia indicates motors with holding brake)

ECM电机参数

Model	Flange Dimensions	Rated Power (W)	Rated Torque （Nm）	Max. Torque （Nm）	Rated Current （Arms）	Rated Rotational Speed （rpm）	Max. Rotational Speed （rpm）	Rotational Inertia (kg.㎡×10⁻⁴)	Voltage (V)
ECM-WH-A530A-U3▲	40	50	0.16	0.48	0.6	3000	6000	0.035(0.038)	220
ECM-WH-0130A-U3▲	40	100	0.32	0.96	1.0	3000	6000	0.053(0.056)	220
ECM-WH-0230A-□3▲	60	200	0.64	1.92	1.4	3000	6000	0.29(0.32)	220
ECM-WH-0430A-□3▲	60	400	1.27	3.81	2.8	3000	6000	0.53(0.56)	220
ECM-WH-0830A-□3▲	80	750	2.4	7.2	3.8	3000	6000	1.62(1.72)	220
ECM-WH-1030A-□3▲	80	1000	3.2	9.6	5.5	3000	6000	2.1(2.2)	220
ECM-WF-0915A-□3▲	130	850	5.39	10.78	5.5	1500	3000	6.18(7.41)	220
ECM-WF-1315A-□3▲	130	1300	8.34	16.68	8	1500	3000	9.16(10.39)	220
ECM-WF-1815A-□3▲	130	1800	11.5	23	12	1500	3000	12.1(13.33)	220
ECM-WF-0915T-□3▲	130	850	5.39	10.78	3.5	1500	3000	6.8(7.41)	380
ECM-WF-1315T-□3▲	130	1300	8.34	16.68	5	1500	3000	9.16(10.39)	380
ECM-WF-1815T-□3▲	130	1800	11.5	23	7	1500	3000	12.1(13.33)	380
ECM-WG-0915A-□3▲	130	850	5.39	16.17	5.5	1500	3000	9.3(10.53)	220
ECM-WG-1315A-□3▲	130	1300	8.34	25.02	8	1500	3000	15.1(16.33)	220
ECM-WG-1815A-□3▲	130	1800	11.5	34.5	12	1500	3000	19.6(20.83)	220
ECM-WG-0915T-□3▲	130	850	5.39	16.17	3.4	1500	3000	9.3(10.53)	380
ECM-WG-1315T-□3▲	130	1300	8.34	25.02	5.2	1500	3000	15.1(16.33)	380
ECM-WG-1815T-□3▲	130	1800	11.5	34.5	7.2	1500	3000	19.6(20.83)	380

Note:
When □ is U: Supports 23-bit optical encoder, requires FV3S-R3 driver

When □ is 3: Supports 17-bit magnetic encoder, requires FV3S-R1 driver
When ▲ is 0: Motor without holding brake
When ▲ is 2: Motor with holding brake
(The values after the rotating inertia indicates motors with holding brake)
