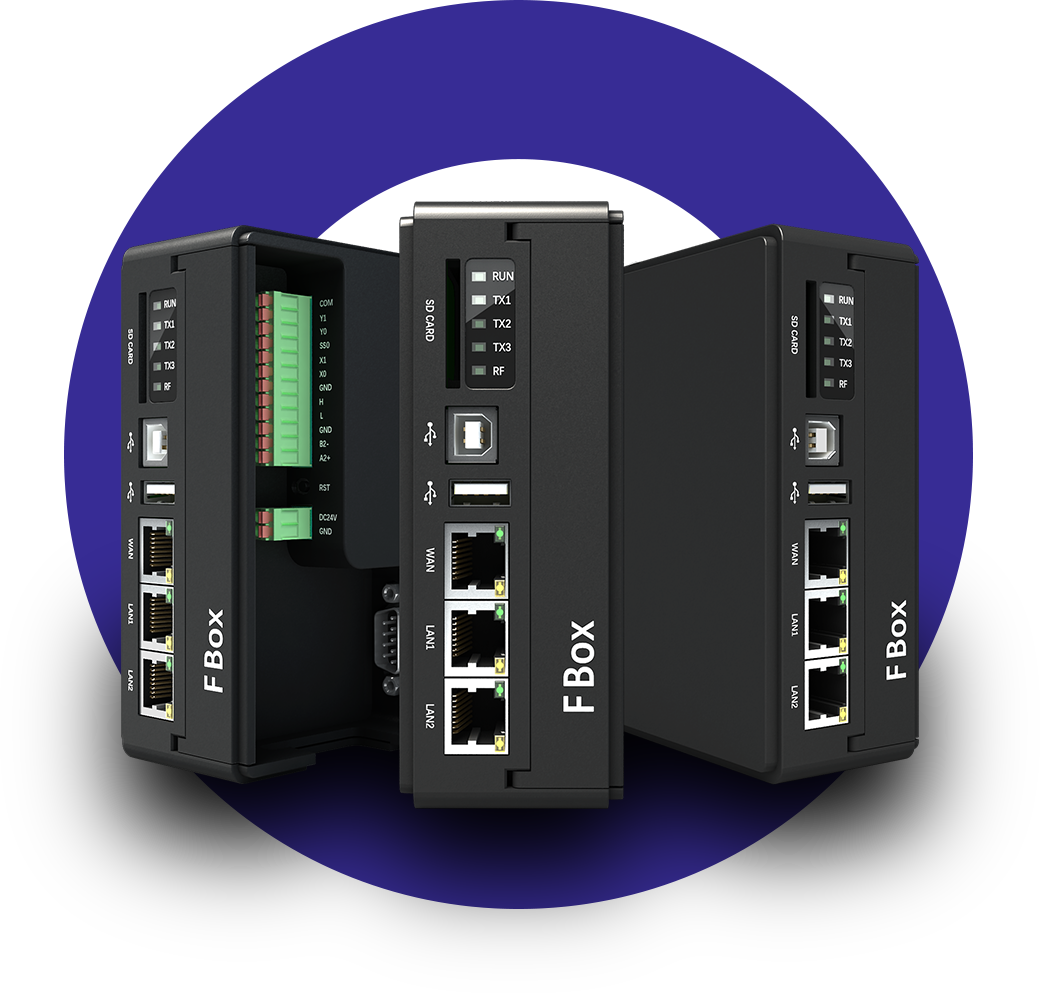

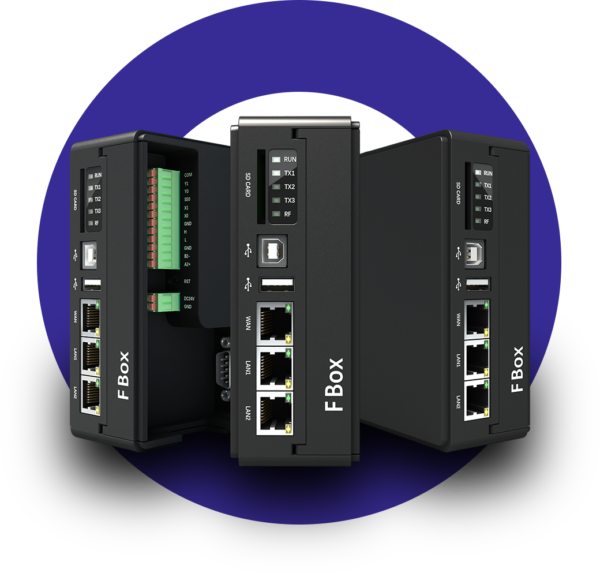

FBox Series

The FBox Series from Flexem serves as a powerful and reliable intelligent data acquisition gateway for Industrial IoT applications. Designed for deployment at the edge of industrial networks, FBox enables real-time data collection, remote monitoring, and remote maintenance of on-site equipment. With support for a wide range of communication protocols, it bridges field devices and upper-level platforms, making it easy to integrate legacy systems into modern IoT ecosystems without disrupting operations.

Built for industrial-grade reliability and flexibility, FBox is ideal for use in sectors such as manufacturing, energy, utilities, and infrastructure. It empowers businesses to remotely access critical data, perform system diagnostics, and push updates or configurations without being physically present on-site. This not only reduces downtime and maintenance costs but also accelerates decision-making and enhances overall system efficiency—making the FBox Series an essential component for any smart factory or connected industrial setup.

Flexem FBox

Flexem strives to create communication solutions for industrial equipment by connecting manufacturers’ devices to the Internet through FBox.
By leveraging cutting-edge cloud technology, we enable network acess, data transfer, cloud computing, as well as remote management and
maintenance of a large number of devices, reducing not only factory investments but also accelerating enterprises’ transition into the era of industrial Internet.

FBox

FBox can connect the devices on site like PLC frequency inverters, gauges etc, and transfer the data to the remote server(Flexem Cloud) through internet, to realize data collection, devices monitoring, software upgrading, faculty alarming etc.

FlexCloud
Managing Platform for the Cloud Devices

Flexem provides industrial devices internet solutions, and connects large quantities of devices to internet, data collection and storage, information push and devices status monitoring,managing and remote programming maintenance function etc.

Simple Setting
Easy-to-use

The main advantages for FBox is simple, and you only need connect the devices through Ethernet GPRS, 3G, 4G etc, no need local setting to realize remote devices managing, data exchanging functions.

Supports a Large Number of Devices Protocols
with Various Connections

FBox supports hundreds of industrial devices drives of PLC, gauges, inverters etc, connect conveniently, and
no need complicated design. With rich connections, it supports RS232, RS485, RS422 and Ethernet etc.

You can check it at any time.

You can visit or check through mobile APP, web pages, clients server, wechalt etc, and it meets the mobile working needs.

Open OPC

Supports open cloud connections, you can develop the upper software by yourself to realize the connection with Flexem cloud and data push service.

Cloud Server

The cloud server supports server groups, and the unique data pushing way to satisfy numerous devices connection simultaneously.

Cloud Data Storage

Supporting data upload and export of historical data. FBox supports offline caching, automatically completing the data transfer after connection restoration to ensure that historical data remains intact.

Remote Download

Supporting remote program updates and online monitoring for PLCs, allowing for quick troubleshooting to identify the causes of malfunctions, facilitating program updates, and reducing the need for on-site visits.

Safe and Reliable

Providing various mechanisms such as access validation, encrypted transmission, permission-based access, functional authorization, secured login, etc., building a secure and reliable data environment.



FEATURES FBox-4G-G FBox-WiFi
Network Access Ethernet,4G Ethernet,WiFi
CPU 600MHz ARM Cortex-A8 600MHz ARM Cortex-A8
Storage 128MB Flash+128MB DDR3 128MB Flash+128MB DDR3
Ethernet 3lines of 10M/100M Ethernet Port 3lines of 10M/100M Ethernet Port
SD Card Available Available
USB Port 1 USB Device 2.0,1 USB Host 2.0 1 USB Device 2.0,1 USB Host 2.0
IO Port 2-line optoelectronic isolated digital input,
2-line relay output (Maximum 5A)
2-line optoelectronic isolated digital input,
2-line relay output (Maximum 5A)
Serial Communication Ports COM1:RS232/RS485/RS422,

COM2:RS485,

COM3:RS232

COM1:RS232/RS485/RS422,

COM2:RS485,

COM3:RS232

Network Frequency Range LTE-FDD:B1/B2/B3/B4/B5/B7/B8/
B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD:B38/B39/B40/B41
WCDMA:B1/B2/B4/B5/B6/B8/B19
GSM:850/900/1800/1900MHz
IEEE802.11b/g/n
compatible WLAN
IEEE 802.11e
QoS Enhancement(WMM)
RTC Built-in Built-in
Rated Power <5W <5W
Input Voltage DC24V,working range:DC9V-28V DC24V,working range:DC9V-28V
Power Prolection Protect from thunder strike and surging Protect from thunder strike and surging
Power Interruption Tolerance <3mS <3mS
Certification CE,RoHS CE,RoHS
Operating Temperature -10-60℃ -10-60℃
Storage Temperature -20-70℃ -20-70℃
Environmental Humidity 10-90%RH (Non condensation) 10-90%RH (Non condensation)
Vibration Endurance 10-25Hz(X/Y/Z direction 2G/30minutes) 10-25Hz(X/Y/Z direction 2G/30minutes)
Cooling Natural cooling Natural cooling
Dimensions 130mm×94mm×48mm(without  antenna) 130mm×94mm×48mm(without antenna)
Weight About 320g About 320g
Endosure Material  Engineering plastic  Engineering plastic
Transparent Transmission  Available  Available
VPN Transparent Transmission Available Available
Data Monitoring 500 points 500 points
Alarm Item 200 points 200points
Historical Item 100 points 100 points
Hisiorical Data Storage Duration 180 days 180 days
Edge Computing It supports scipts programming It supports scipts programming
Network Protocols It supports over 400 industrial devices protocols It supports over 400 industrial devices protocols
Management & Maintenance Support import,export,and remote update of configuration files Support import,export,and remote update of configuration files
