F5 Series PLC Expansion Board

The F5 Series PLC Expansion Board from Flexem is designed to extend the I/O capabilities of the F5 Series PLCs, enabling flexible and scalable automation control. Ideal for applications that require additional digital or analog input/output channels, this expansion board allows seamless integration into existing control architectures without compromising performance. It is perfectly suited for machine control, process automation, and industrial system upgrades where space efficiency and adaptability are critical.

Built with industrial-grade reliability, the F5 Expansion Board supports plug-and-play installation, quick wiring, and easy configuration. It maintains high-speed data communication with the base PLC unit, ensuring accurate signal processing and synchronized control. Whether expanding a compact standalone system or enhancing a complex distributed setup, the F5 Series Expansion Board provides the flexibility and reliability needed to meet evolving automation demands.



Motion Controller

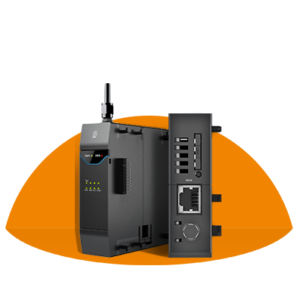

F5 series PLC can be connected to the cloud server through IoT module which is installed on the left side of CPU, to realize remote operation and maintenance,data monitoring function, etc. Provide a more professional and efficient solution for customers.

Supports Ladder Diagram(LD) and Structure Text(ST) language

F5 series intelligent PLC project development is based on FStudio Unified software which supports LAD and ST programming language, easy to solve problems in various scenarios.
F5 series intelligent PLC project development is based on FStudio Unified software which supports LAD and ST programming language, easy to solve problems in various scenarios.



Graphical interface, more intuitive


FSU software provides graphical interface with more intuitive hardware configuration display, and facilitate to project settings for more efficient project development.

PLC project download without external power supply
If there is no external power supply for F5 series intelligent PLC, it also can download project with Type-C data cable used to connect the F5 PLC and the computer.

Support Modbus-RTU/TCP protocol

F5 series intelligent PLC supports Modbus-RTU/TCP protocol, easy to configure communication settings without any code.For same protocol but multiple slaves, it supports to copy one slave configuration to others for rapid project development.



Abundant models and various expansion modules
F5 series intelligent PLC has different power input methods, output types, abundant I/O points,and dozens of digital and analog expansion modules for customers to select.In addition, hidden expansion board provides more economic and convenient solution.



Serial Board
Model F5-BSC01 F5-BSC02
Description Serial ports expansion board
Channel 1
Isolation Non-isolation lsolation
Ports RS485/RS232
Protocol RS485/232，baud rate: 4800-115200bps
Power Supply 5VDC –15%/+20%, 3.2W max. The main unit is provided internally without external input
Wiring Strucutre Non-removable terminal block
Working Temperature -10~60℃
Storage Temperature -20~70℃
Ervironment Humidity 10-90%RH  (Non-condensing)
Installation CPU Front expansion board slot
Dimension 38mmx40mmx18mm
Analog Expansion Board
Model F5-BA0200B F5-BA0200B F5-BA0002B
Input 2 – 1
Output – 2 1
Resolution 12-bit
Input/Output Signal Range Voltage: 0-10V; Current: 0-20mA/4-20mA
Full Range Customized  (0~4096)
Conversion Precision
(full  range)		 ±1% ±1%
Maximum Signal Input   Voltage:30V Current 30mA – Voltage:30V Current 30mA
Impedance Input Voltage>100K ohms;
Current < 250ohms+5%		 – Voltage>100K ohms;
Current < 250ohms+5%
Output Load Range – Voltage>2k ohms Current<500ohms
Power Supply 5VDC-15%/+20%, 3.2W max. The main unit is provided internally without external input
Wring Structure Non-removable terminal block
Working Temperature -10~60℃
Storage Temperature -20~70℃
Environment Humidity 5%~95%RH(Non-condensing)
Installation CPU Front expansion board slot
Dimension 38mmx40mmx18mm
Temperature sensor board
Model F5-BS0200P
Description Resister temperature sensor input sensor
Input 2
Rated Power ≤20mA (full load)
Input Sensor Type Pt100、Ni100、Ni120、Cu50、Cu100
Resolution 0.1℃
Measuring Precision(Under 25℃ Environment) ±0.5% or ±1°C, take the larger value
Measuring Temp ◆Pt100, Ni100, Ni120; PV ±1% or ±1°C, take the larger value
Temperature  Range:-20℃~60° ◆Cu50, Cu100: PV ±1% or ±1.5°C, take the larger value
Connector type Screw terminal
Impedance Input ≥1 MΩ
Cycle <=100ms/channel
Minimum Value Input 0.1°C
Supports out-of-range detection Support
Support disconnection alarm Support
Input Filtering 0~10S (take 0.01s as one unit)
Measuring Range ◆Pt100: –200~850°C
◆Ni100: –60~180°C
◆Ni120: –60~180°C
◆ Cu50: -50~150°C
◆Cu100: -50~150°C
