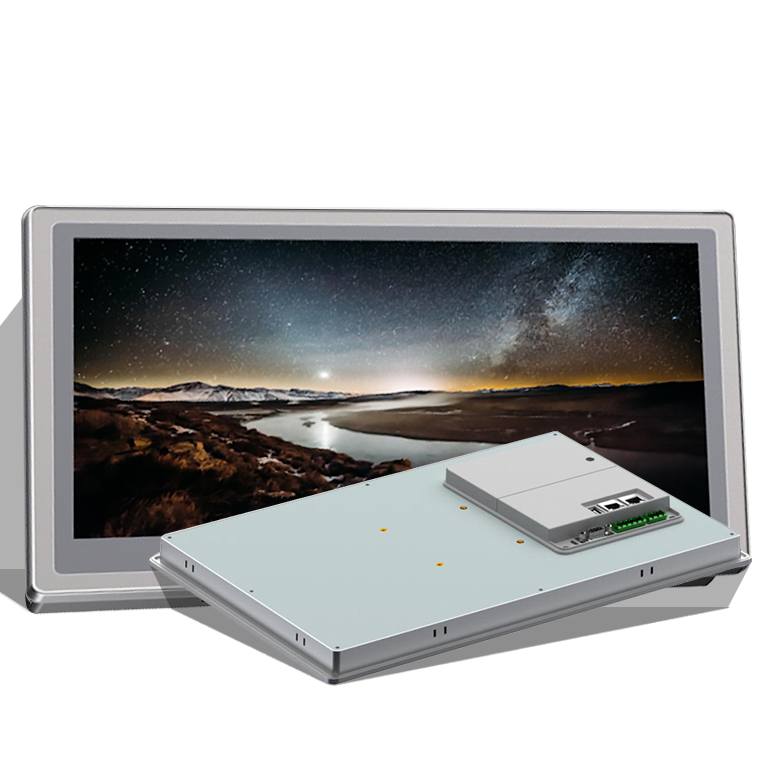

FE6156H

The FE6156H from Flexem, part of the Flexem Industrial HMI 6000 Series, represents the next generation of IIoT-enabled human-machine interfaces. Designed for performance and value, it features a durable aluminum-plastic enclosure and offers a high-resolution touchscreen with a clean, modern front face. With its cost-effective design and refined aesthetics, the FE6156H combines functionality and style, making it ideal for industrial applications that demand both performance and professional presentation.

Built to operate in harsh industrial environments, the FE6156H’s mainboard is protected with a three-layer anti-corrosion coating, ensuring reliable performance in the face of dust, humidity, and chemical exposure. The interface also adopts a more practical bottom-line wiring design, allowing for easier installation and maintenance. With support for IIoT integration and high reliability, the FE6156H is a smart choice for modern factories looking to enhance machine interaction and enable remote data access within their automation systems.

Flexem logo

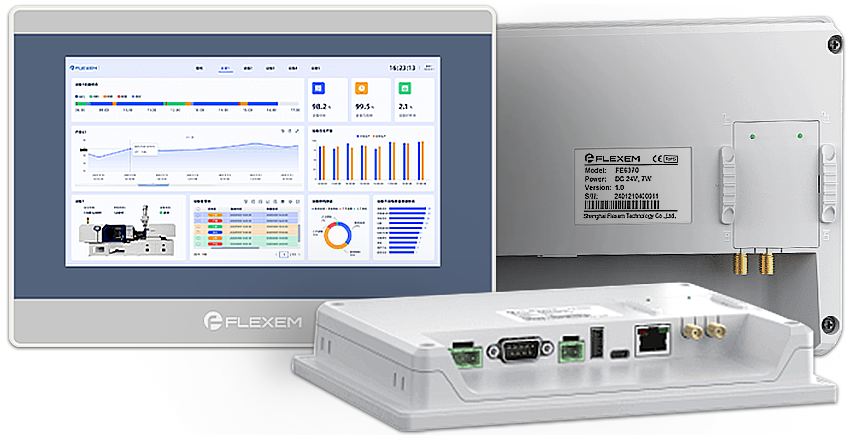

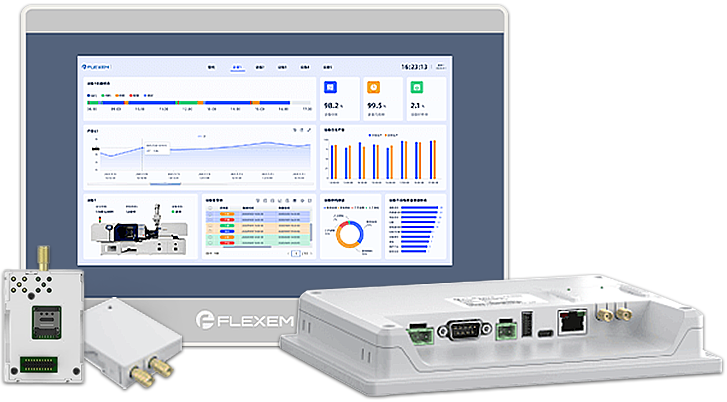

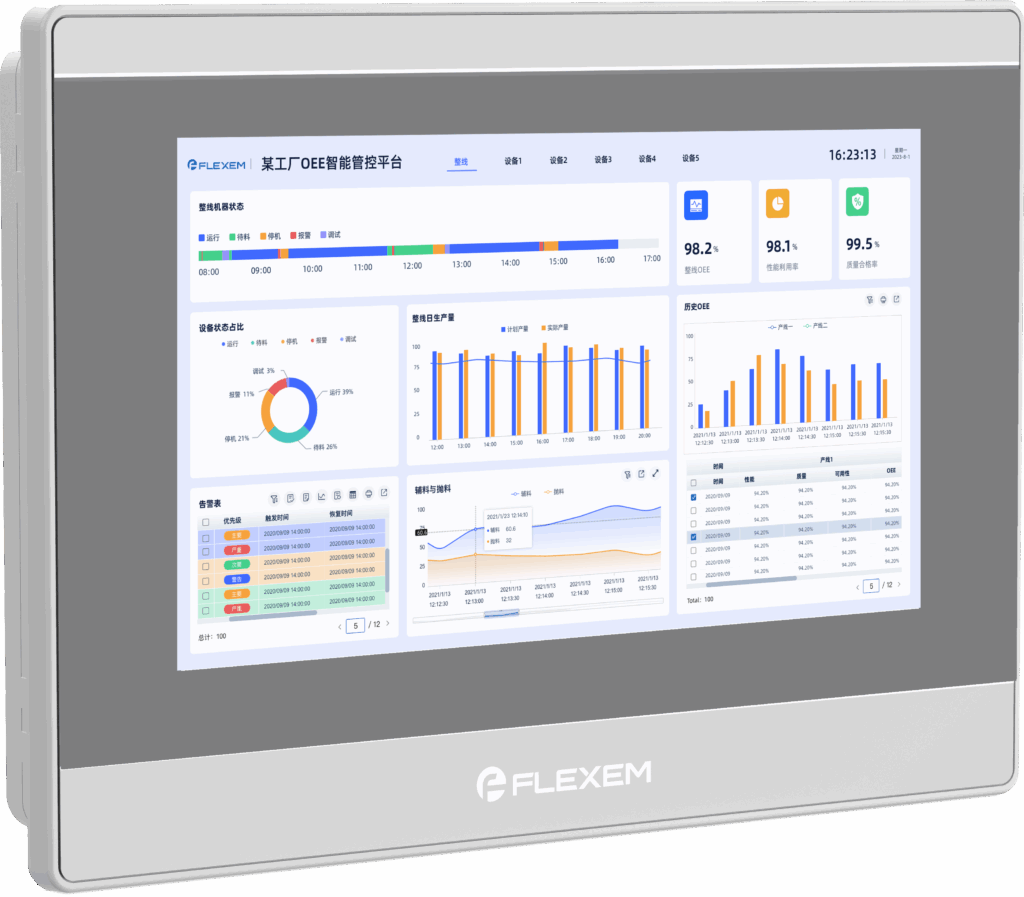

FE6300 Series

High Performance Touch Screen

IoT HMI

Comprehensive Configuration

Hardware configuration comparable to standard IPC with dual-core 1GHz ARM Cortex-A7, 4GB eMMC + 256MB DDR3.

4G/WiFi, Model

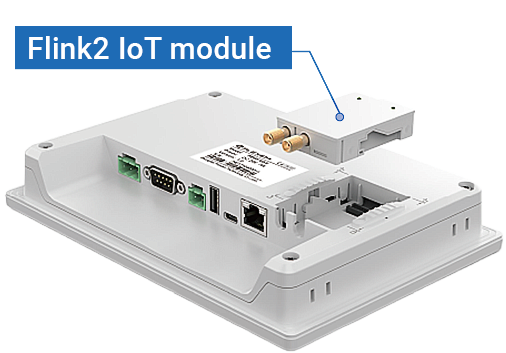

The new FLink2 IOT module supports both physical IoT card and patch card, which can be flexibly switched according to the actual environment. Provides a variety of Internet connection methods, plug and play, reducing the IoT program application access costs.

4G Model WiFi Model 4G+WiFi Model

Hidden Installation, Supports Hot Swapping
Free from Hardware Lock-in

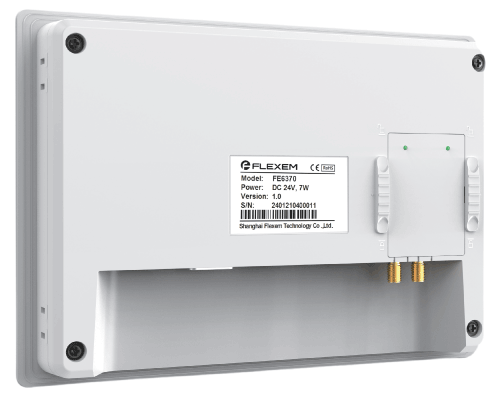

The FLEXEM 6300 Series HMI features a reserved slot for IoT module installation on the back, with a latch-locking mechanism that makes installation easier and more streamlined. This design ensures that the structure is not obtrusive, enhancing the aesthetic appeal of the device while maintaining convenience. The HMI supports hot-swappable modules, allowing for secure replacement even during operation.



Software Upgrade, Stand-alone Configuration

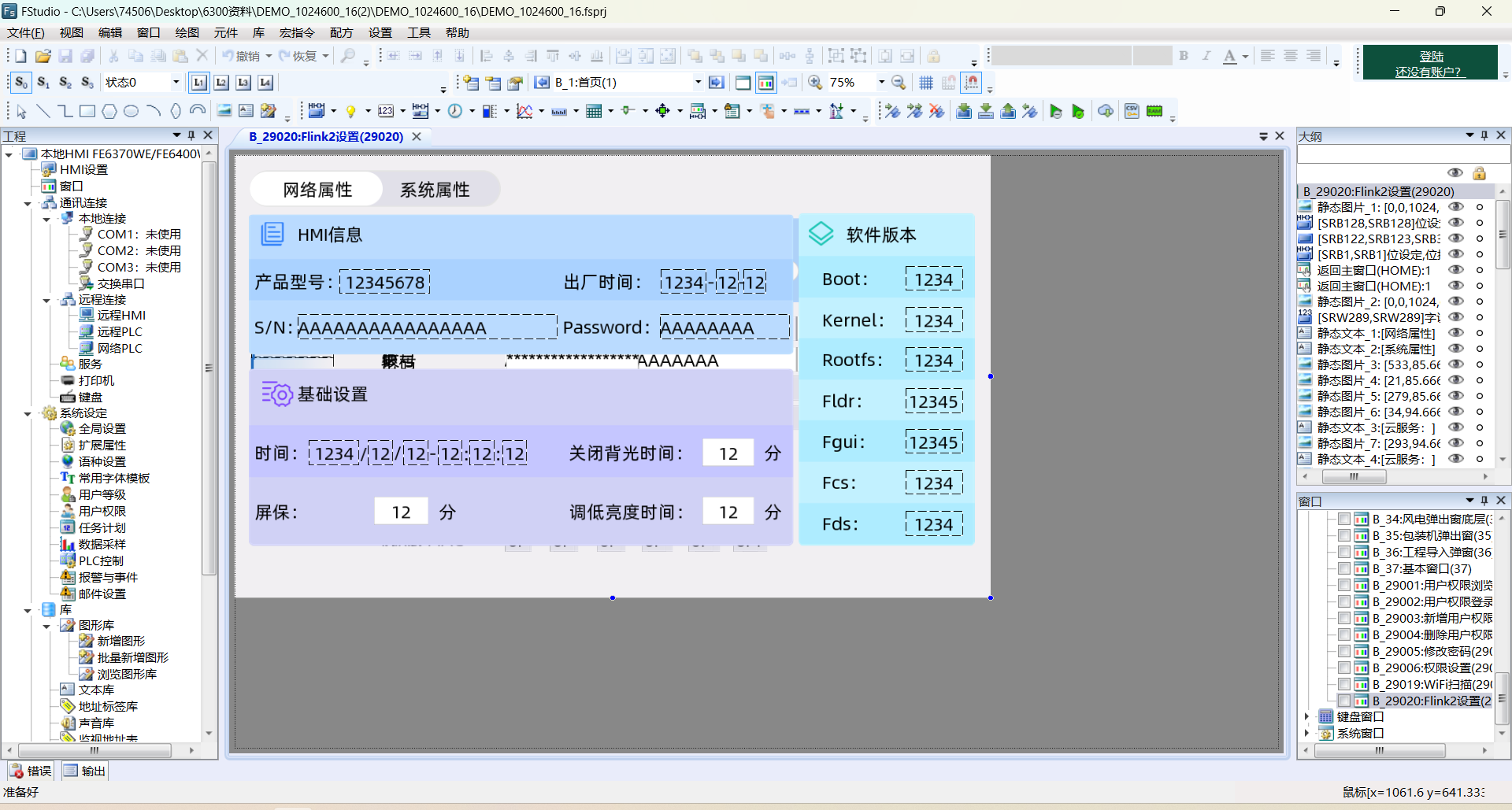

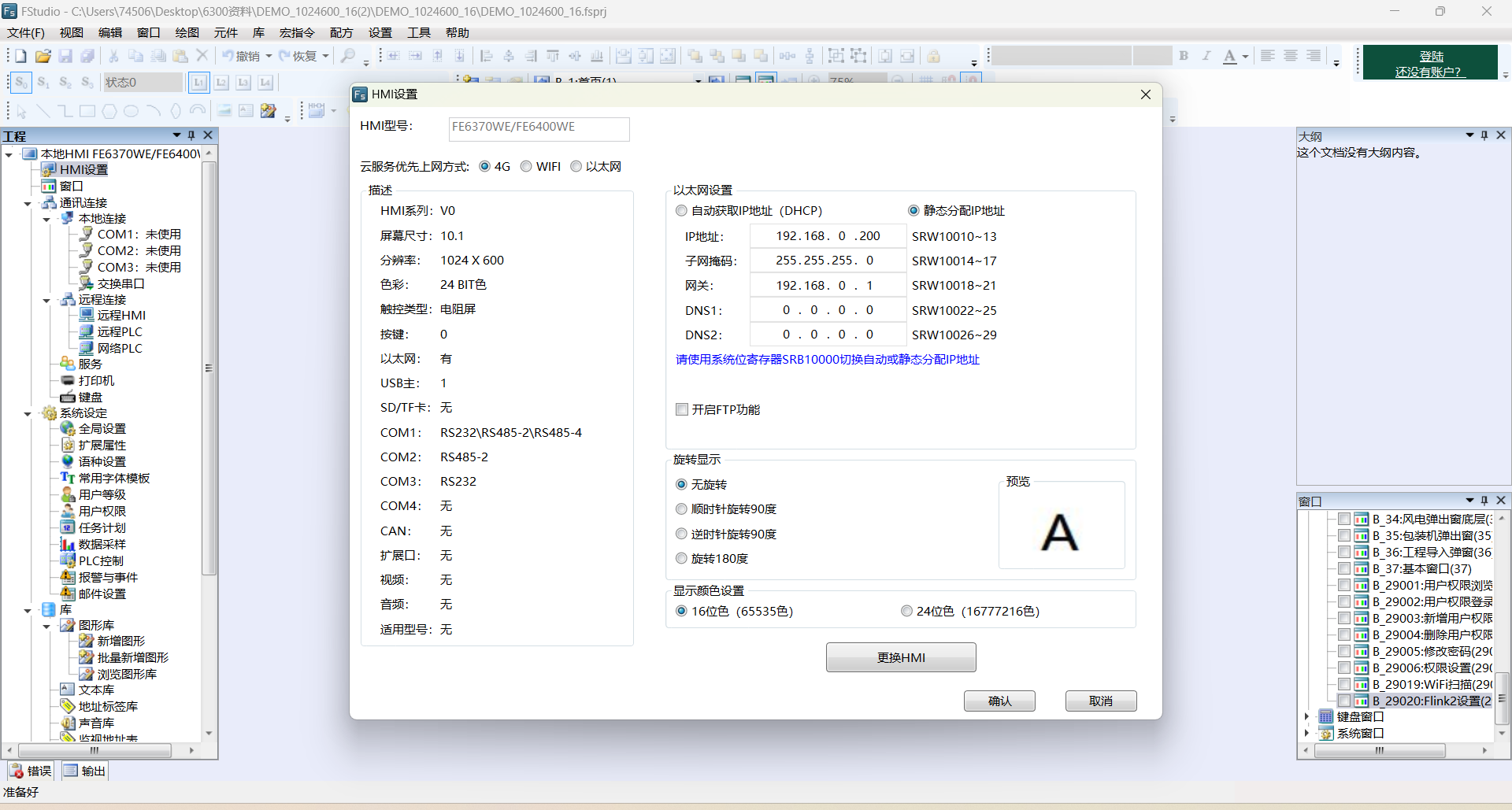

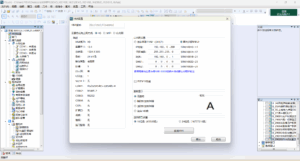

In FStudio configuration software, users can freely configure the priority of Internet access, new right drop-down window interaction mode, users can customize the content of the window. In addition, the software itself supports the MQTT communication protocol, no need to rely on the gateway, users can easily configure, subscribe and publish data without writing complex scripts.

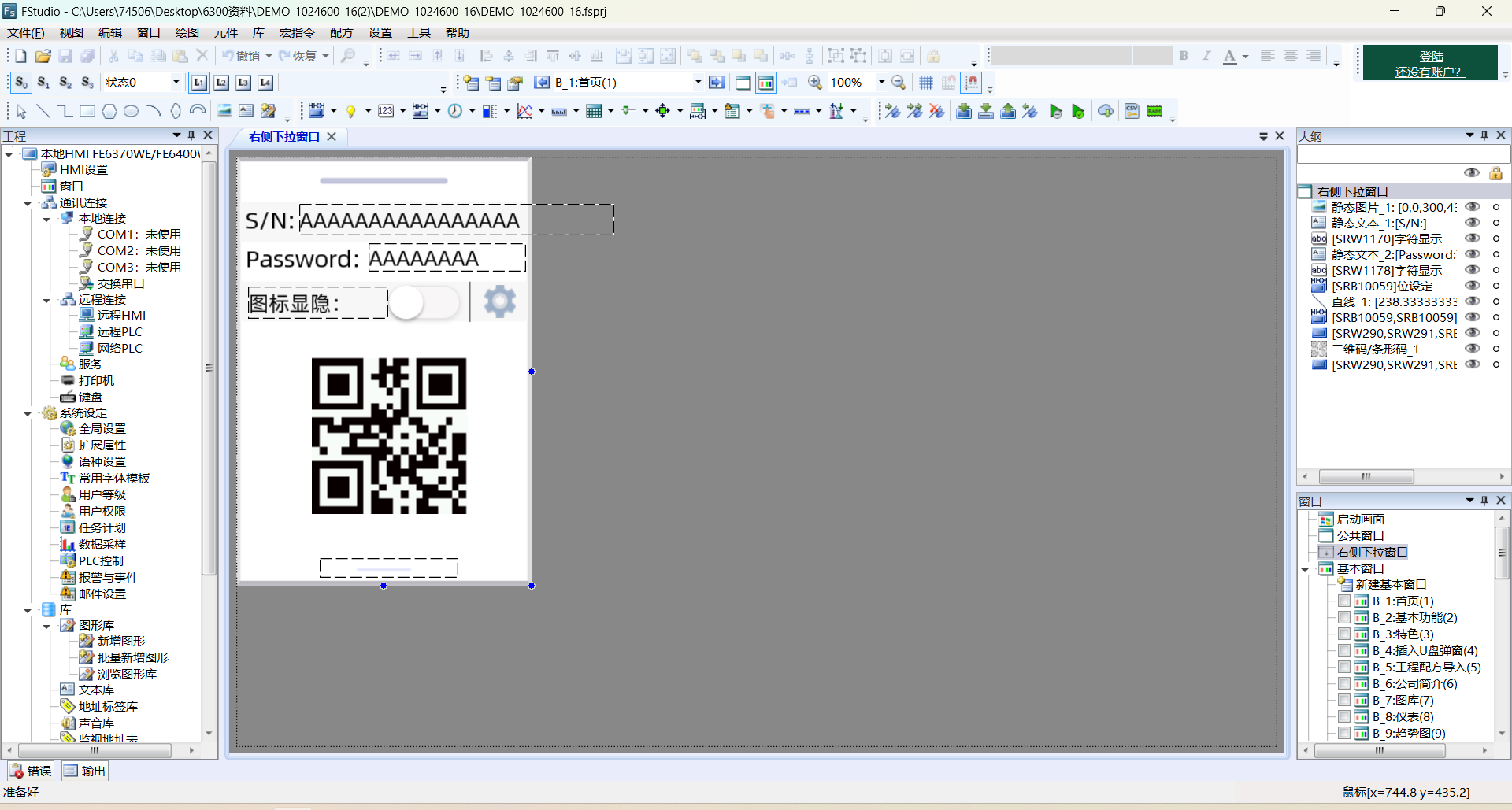

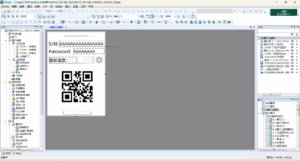

Ethernet/ WiFi/ 4G Customize the content of the drop-down window Support MQTT


Outstanding Performance




FEATURES FE6156H
Display 15.6″ 16:9 TFT LCD
LCD viewing angle(T/B/L/R) 85’/85’/85’/85′
Resolution(WxH) 1920×1080
Colors 65K
Brightness 250  cd/m²
Backlight LED
LCD Life 50000 hours
Touch Panel 4 wires resistive touch screen
CPU 1G ARM Cortex-A8
Memory 256MB FLASH+512MB DDR3
RTC Built in
SD card Micro SD(TF) card
Ethemet 10M/100M Ethernet
USB Port 1 USB Slave 2.0 Port;1USB Host 2.0 Port
Download Project USB Disk/USB Device/Ethemet
COM Port COM1/COM3:RS232/RS485/RS422;
COM2:RS485/RS422
RatedPower <18W
RatedVoltage DC24V,Input Range:DC 18V~28V
PowerProtection Isolated power supply,protected from thunderstrike and surging
AllowPowerLoSs <5mS
CE & RoHS EN61000-6-2:2005,EN61000-6-4:2007,RoHS,  CESurge
Immunity:±1KV;EFT:±2KV;ESD:4KV,Air:8KV
Operating Temperature 0~50℃
StorageTemperature -20~60℃
UVAprotectation Do not work in strong ultraviolet light (such as direct sunlight)
Ambient Temperature 10~90%RH(Non Condensation)
Shock Resistance 10~25Hz(X/Y/Z 2G/30Min)
Cooling Method Natural cooling
Installation embedded instalation/VESA instalation
Degree of Protection FrontIP65(with NEMA Panel), Back IP20
Enclosure Aluminum Alloy
Panel Cutout 380mm×245mm
Dimension 394mm×256mm ×36mm ,thickness 22mm(not including
expansion_
Weight About 2250g
