FE6370W
FE6370W - Image 1

FE6370W

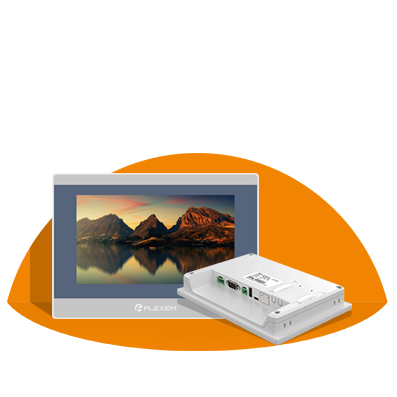

The FE6370W 7″ IoT HMI from Flexem is a compact yet powerful interface designed for industrial applications requiring seamless control, monitoring, and IoT connectivity. Featuring a 7-inch 16:9 resistive TFT LCD with 1024×600 resolution and 24-bit color depth, it delivers clear and vivid graphics in a durable gray-framed enclosure. Powered by a 1GHz dual-core Cortex-A7 CPU and equipped with 4GB of internal storage, the FE6370W ensures smooth operation, fast data handling, and responsive performance in demanding environments.

As part of the advanced FE6300 series, the FE6370W supports up to 3000 tags, making it suitable for complex HMI applications in process control, machinery, and smart systems. It features a pluggable Flink2 IoT module, enabling flexible and secure internet connectivity for remote access, cloud integration, and real-time data exchange. This makes the FE6370W a smart, future-ready choice for industries aiming to enhance their automation infrastructure with reliable, connected, and efficient HMI solutions.

Flexem logo

FE6300 Series

High Performance Touch Screen

IoT HMI

Comprehensive Configuration

Hardware configuration comparable to standard IPC with dual-core 1GHz ARM Cortex-A7, 4GB eMMC + 256MB DDR3.

4G/WiFi, Model

The new FLink2 IOT module supports both physical IoT card and patch card, which can be flexibly switched according to the actual environment. Provides a variety of Internet connection methods, plug and play, reducing the IoT program application access costs.
4G Model WiFi Model 4G+WiFi Model

Hidden Installation, Supports Hot Swapping
Free from Hardware Lock-in

The FLEXEM 6300 Series HMI features a reserved slot for IoT module installation on the back, with a latch-locking mechanism that makes installation easier and more streamlined. This design ensures that the structure is not obtrusive, enhancing the aesthetic appeal of the device while maintaining convenience. The HMI supports hot-swappable modules, allowing for secure replacement even during operation.


Software Upgrade, Stand-alone Configuration
In FStudio configuration software, users can freely configure the priority of Internet access, new right drop-down window interaction mode, users can customize the content of the window. In addition, the software itself supports the MQTT communication protocol, no need to rely on the gateway, users can easily configure, subscribe and publish data without writing complex scripts.

Ethernet/ WiFi/ 4G Customize the content of the drop-down window Support MQTT


Outstanding Performance



FEATURES FE6370W
Display 7″ 16:9 TFT LCD
LCD  Viewing  Angles(T/B/L/R) 85’/85’/85’/85′
Resolution 1024×600
Colors 24-bit
Brightness 350 cd/m²
Backlight LED
LCD Lifetime 50000 hours
Touch Panel 4-wire resistive touchscreen
CPU 1GHz, Dual core Cortex-A7
Storage 4GB eMMC + 256MB DDR3
RTC Built-in
SD Card NA
Ethernet port NA
USB Port 1*USB Type-C 2.0 port, 1*USB Type-A 2.0 port
Download Method USB slave / Flash drive
Serial port COM1: RS232/RS485/RS422,

COM3: RS232
Rated power <10W
Input Voltage DC24V, Working range DC9V-28V
Power supply protection With lightning surge protection
Power Interruption Tolerance <5mS
Certification CE,RoHS
Operating Temperature 0-50℃
StorageTemperature -20-60℃
UV Resistance Operating in high UV environment is prohibited
Environmental Humidity 10-90%RH (Non condensing)
Vibration Endurance 10-25Hz (X,Y,Z direction 2G/30 minutes)
Cooling Mode Natural Cooling
Protection Level Front:IP65,Rear:IP20
Enclosure Material Engineering plastic, gray
Cutout Size 190mm×136mm
Dimensions 204mm×145mm×36.6mm
Weight About 476g
